Load Integration Services Assembly File Into Visual Studio 2010 Project


SQL Server Integration Services 2012 comes with a new API for scripting packages which is called MOM – Managed Object Model. This API is accessed through the Microsoft.SqlServer.Management.IntegrationServices.dll assembly file. However, when you create an SSIS 2012 project/package using Visual Studio 2010, the assembly file is missing.

In this post, I will show you one of the ways of loading the assembly into the project.

We begin by launching Microsoft Visual Studio and creating a new Integration Services Project which is located under Business Intelligence Projects category.
After you have assigned a project name, proceed to click and drag the Script Task into the Control Flow pane from the toolbox.

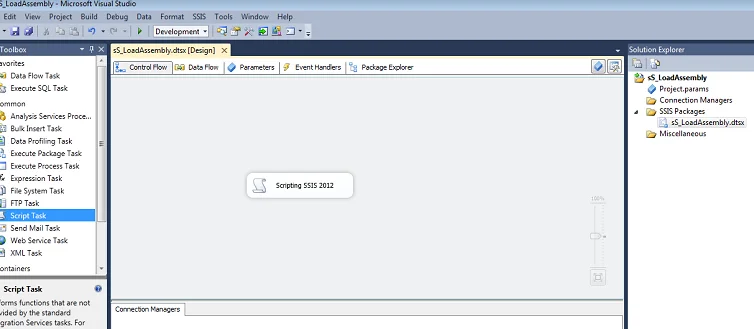

I have called the package “sS_LoadAssembly.dtsx” and the Script Task “Scripting SSIS 2012” as shown below.

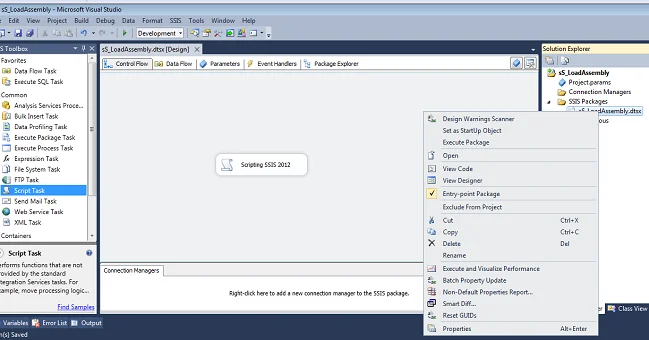

In Solution Explorer, right-click the package “sS_LoadAssembly.dtsx” as shown below.
Click “View Code”
An XML file called “sS_LoadAssembly.dtsx[XML]” is opened

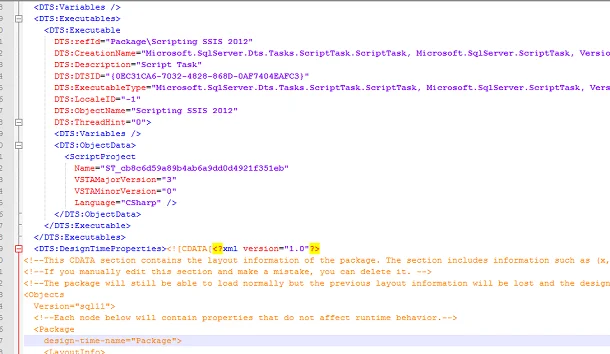

Take note of the elements under node “DTS:ObjectData” – there is currently a single element called “ScriptProject”
Let’s go back to the file called “sS_LoadAssembly.dtsx[Design”
Right-click the script task and click on “Edit”
Under the Script Task Editor change the “ScriptLanguage” to “Microsoft Visual C# 2010″.
Click Edit Script.
Close the script.
Save the changes.
Go back to the “sS_LoadAssembly.dtsx[XML]” XML file.

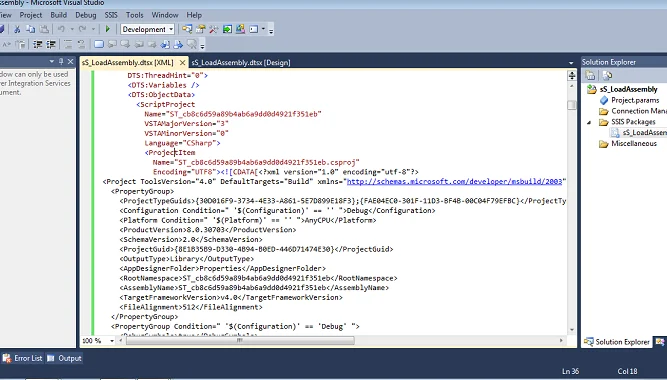

You will notice that additional elements have been added under node “DTS:ObjectData”
We are interested in the node called “ItemGroup”

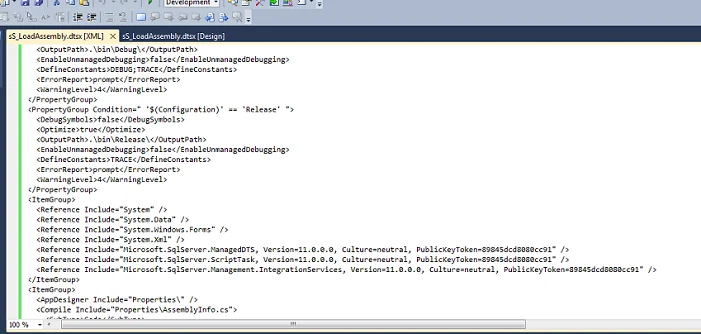

Let’s add a reference to the Microsoft.SqlServer.Management.IntegrationServices.dll assembly file as follows:

  • <Reference Include=”Microsoft.SqlServer.Management.IntegrationServices, Version=, Culture=neutral, PublicKeyToken=89845dcd8080cc91″ />

Save all changes.
Go back to the file called “sS_LoadAssembly.dtsx[Design”
Right-click the script task and click on “Edit”
Click Edit Script.
Collapse “Namespaces”
Insert the following:

  • using Microsoft.SqlServer.Management.IntegrationServices;

Voilà! Now you can go ahead and access the new API for scripting SSIS 2012.
